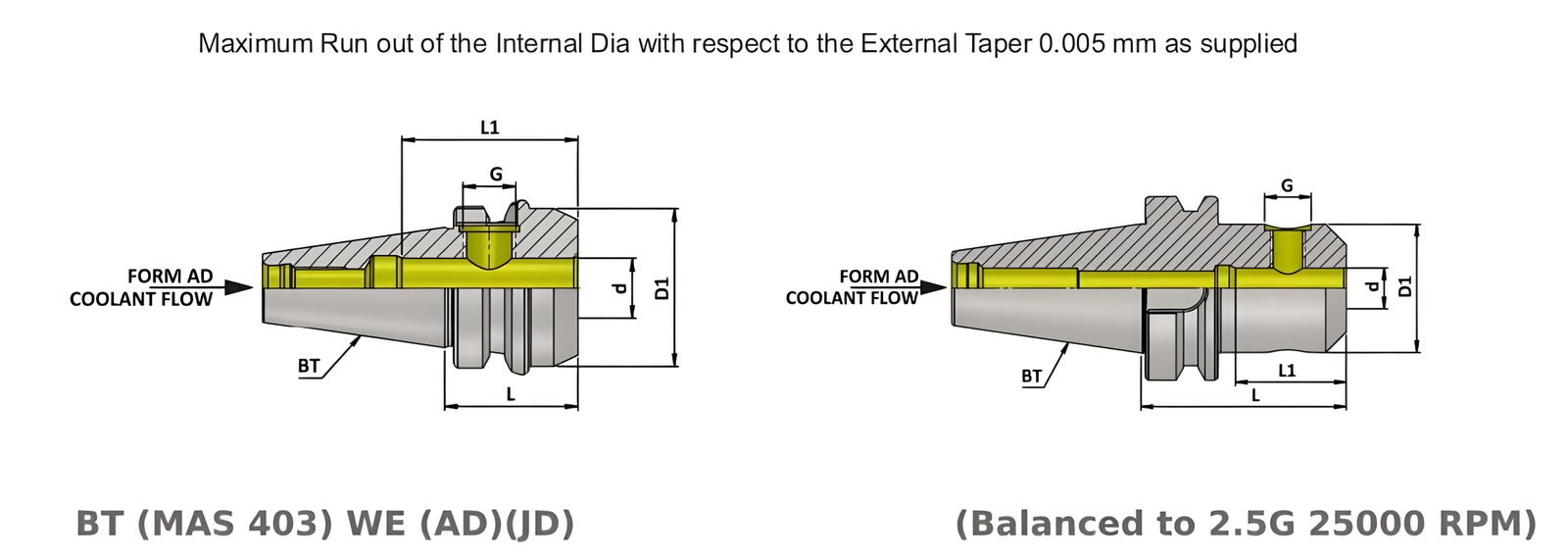

| Item Name | BT | d | D1 | D2 | G | L | L1 | L2 | SCREW QT |
|---|---|---|---|---|---|---|---|---|---|
| BT50 WE06 063 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 6 | 25 | - | M6 | 63 | 34 | - | 1 |
| BT50 WE06 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 6 | 25 | 36 | M6 | 100 | 34 | 35 | 1 |
| BT50 WE06 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 6 | 25 | 43 | M6 | 130 | 34 | 50 | 1 |
| BT50 WE06 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 6 | 25 | 43 | M6 | 160 | 34 | 80 | 1 |
| BT50 WE08 063 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 8 | 28 | - | M8 | 63 | 34 | - | 1 |
| BT50 WE08 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 8 | 28 | 38 | M8 | 100 | 34 | 35 | 1 |
| BT50 WE08 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 8 | 28 | 46 | M8 | 130 | 34 | 50 | 1 |
| BT50 WE08 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 8 | 28 | 46 | M8 | 160 | 34 | 80 | 1 |
| BT50 WE10 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 10 | 35 | - | M10 | 80 | 40 | - | 1 |
| BT50 WE10 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 10 | 35 | 42 | M10 | 100 | 40 | 35 | 1 |
| BT50 WE10 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 10 | 35 | 49 | M10 | 130 | 40 | 50 | 1 |
| BT50 WE10 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 10 | 35 | 49 | M10 | 160 | 40 | 80 | 1 |
| BT50 WE12 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 12 | 42 | - | M12 | 80 | 46 | - | 1 |
| BT50 WE12 100 Weldon Type Holder (Balanced to G 2.5 15000 rpm) (DIN 6359) | 50 | 12 | 42 | 48 | M12 | 100 | 46 | 35 | 1 |
| BT50 WE12 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 12 | 42 | 55 | M12 | 130 | 46 | 50 | 1 |
| BT50 WE12 160 Weldon Type Holder (Balanced to G 2.5 15000 rpm) (DIN 6359) | 50 | 12 | 42 | 48 | M12 | 160 | 46 | 35 | 1 |
| BT50 WE14 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 12 | 42 | - | M12 | 80 | 46 | - | 1 |
| BT50 WE14 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 12 | 42 | 50 | M12 | 100 | 46 | 35 | 1 |
| BT50 WE14 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 14 | 44 | 56 | M12 | 130 | 46 | 50 | 1 |
| BT50 WE14 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 12 | 42 | 50 | M12 | 160 | 46 | 35 | 1 |
| BT50 WE16 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 16 | 48 | - | M14 | 80 | 48 | - | 1 |
| BT50 WE16 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 16 | 48 | 54 | M14 | 100 | 48 | 35 | 1 |
| BT50 WE16 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 16 | 48 | 60 | M14 | 130 | 48 | 50 | 1 |
| BT50 WE16 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 16 | 48 | 60 | M14 | 160 | 48 | 80 | 1 |
| BT50 WE18 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 18 | 50 | - | M14 | 80 | 48 | - | 1 |
| BT50 WE18 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 18 | 50 | 63 | M14 | 100 | 48 | 35 | 1 |
| BT50 WE18 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 18 | 50 | 62 | M14 | 130 | 48 | 50 | 1 |
| BT50 WE18 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 18 | 50 | 62 | M14 | 160 | 48 | 80 | 1 |
| BT50 WE20 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 20 | 52 | - | M16 | 80 | 52 | - | 1 |
| BT50 WE20 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 20 | 52 | 65 | M16 | 100 | 52 | 35 | 1 |
| BT50 WE20 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 20 | 52 | 66 | M16 | 130 | 52 | 50 | 1 |
| BT50 WE20 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 20 | 52 | 66 | M16 | 160 | 52 | 80 | 1 |
| BT50 WE25 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 25 | 65 | - | M18X2 | 100 | 56 | - | 2 |
| BT50 WE25 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 25 | 65 | - | M18X2 | 130 | 56 | - | 2 |
| BT50 WE25 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 25 | 65 | - | M18X2 | 160 | 56 | - | 2 |
| BT50 WE32 105 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 32 | 72 | - | M20X2 | 105 | 60 | - | 2 |
| BT50 WE32 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 32 | 72 | - | M20X2 | 130 | 60 | - | 2 |
| BT50 WE32 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 32 | 72 | - | M20X2 | 160 | 60 | - | 2 |
| BT50 WE40 115 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 40 | 80 | - | M20X2 | 115 | 70 | - | 2 |
| BT50 WE40 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 40 | 80 | - | M20X2 | 130 | 70 | - | 2 |
| BT50 WE40 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359) | 50 | 40 | 80 | - | M20X2 | 160 | 70 | - | 2 |
| BT50 WE50 125 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359) | 50 | 50 | 100 | - | M24X2 | 130 | 80 | - | 2 |
-250x250w.png "BT50 WE06 063 Weldon Type Holder (Balanced to G2.5 25000 rpm) (DIN 6359)")
-30 %
Brand: ToolsEngg
Weight: 4.20kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE06 063 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
6
25
..
$58.51 USD $83.58 USD
-30 %
Brand: ToolsEngg
Weight: 4.40kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE06 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
6
25
..
$66.45 USD $94.93 USD
-30 %
Brand: ToolsEngg
Weight: 3.50kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QTY
BT50 WE06 130 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
6
25
43
M6
130
34..
$84.00 USD $120.00 USD
-30 %
Brand: ToolsEngg
Weight: 4.40kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE06 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
6
25
..
$81.33 USD $116.18 USD
-30 %
Brand: ToolsEngg
Weight: 4.29kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE08 063 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
8
28
..
$56.53 USD $80.75 USD
-30 %
Brand: ToolsEngg
Weight: 4.66kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE08 100 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
8
28
..
$67.44 USD $96.34 USD
-30 %
Brand: ToolsEngg
Weight: 4.20kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QTY
BT50 WE08 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359)
50
8
28
46
M8
130
34..
$84.00 USD $120.00 USD
-30 %
Brand: ToolsEngg
Weight: 4.90kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE08 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
8
28
..
$84.30 USD $120.43 USD
-30 %
Brand: ToolsEngg
Weight: 4.18kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE10 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
10
35
..
$56.53 USD $80.75 USD
-30 %
Brand: ToolsEngg
Weight: 4.63kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QT
BT50 WE10 080 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
10
35
..
$67.44 USD $96.34 USD
-30 %
Brand: ToolsEngg
Weight: 4.50kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QTY
BT50 WE10 130 Weldon Type Holder (Balanced to G 6.3 15000 rpm) (DIN 6359)
50
10
35
49
M10
130
&nbs..
$84.00 USD $120.00 USD
-30 %
Brand: ToolsEngg
Weight: 4.73kg
Item Name
BT
d
D1
D2
G
L
L1
L2
SCREW QTY
BT50 WE10 160 Weldon Type Holder (Balanced to G 2.5 25000 rpm) (DIN 6359)
50
10
35
49
M10
160
..
$80.94 USD $115.63 USD
