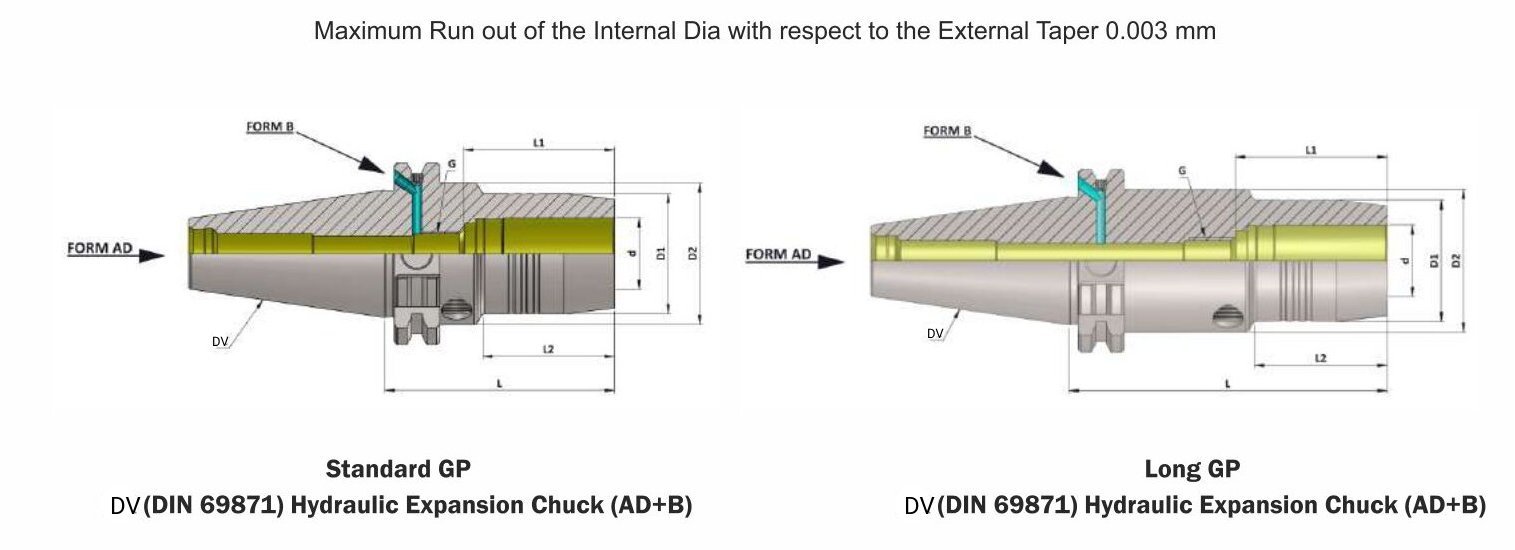

| Item Name | SK | d | D1 | D2 | G | L | L1 | L2 |
|---|---|---|---|---|---|---|---|---|
| DV50 HC06 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 6 | 26 | 49.5 | M5 | 80.5 | 37 | 29.5 |
| DV50 HC06 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 6 | 26 | 49.5 | M5 | 110 | 37 | 29 |
| DV50 HC08 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 8 | 28 | 49.5 | M6 | 80.5 | 37 | 30 |
| DV50 HC08 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 8 | 28 | 49.5 | M6 | 110 | 37 | 30 |
| DV50 HC10 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 10 | 30 | 49.5 | M8 | 80.5 | 41 | 35 |
| DV50 HC10 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 10 | 30 | 49.5 | M8 | 110 | 41 | 35 |
| DV50 HC12 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 12 | 32 | 49.5 | M10 | 80.5 | 46 | 40 |
| DV50 HC12 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 12 | 32 | 49.5 | M10 | 110 | 46 | 40 |
| DV50 HC14 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 14 | 34 | 49.5 | M10 | 80.5 | 46 | 40 |
| DV50 HC14 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 14 | 34 | 49.5 | M10 | 110 | 46 | 40 |
| DV50 HC16 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 16 | 38 | 49.5 | M12 | 80.5 | 49 | 45 |
| DV50 HC16 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 16 | 38 | 49.5 | M12 | 110 | 49 | 45 |
| DV50 HC18 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 18 | 40 | 49.5 | M12 | 80.5 | 49 | 46 |
| DV50 HC18 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 18 | 40 | 49.5 | M12 | 110 | 49 | 46 |
| DV50 HC20 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 20 | 42 | 49.5 | M16 | 80.5 | 51 | 42 |
| DV50 HC20 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 20 | 42 | 49.5 | M16 | 110 | 51 | 42 |
| DV50 HC25 100 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 25 | 55 | 63 | M16 | 100 | 57 | 48 |
| DV50 HC25 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 25 | 55 | 63 | M16 | 110 | 57 | 48 |
| DV50 HC32 100 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 32 | 63 | 70 | M16 | 100 | 61 | 61 |
| DV50 HC32 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871) | 50 | 32 | 63 | 70 | M16 | 110 | 61 | 61 |
-30 %
Brand: ToolsEngg
Weight: 2.70kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC06 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
6
26
49.5
M5
110
37
..
$329.17 USD $470.24 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC06 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
6
26
49.5
M5
80.5
37
..
$247.97 USD $354.24 USD
-30 %
Brand: ToolsEngg
Weight: 2.70kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC08 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
8
28
49.5
M6
110
37
..
$324.58 USD $463.68 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC08 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
8
28
49.5
M6
80.5
37
..
$243.49 USD $347.84 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC10 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
10
30
49.5
M8
110
41
..
$324.58 USD $463.68 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC10 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
10
30
49.5
M8
80.5
41
..
$243.49 USD $347.84 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC12 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
12
32
49.5
M10
110
46
..
$324.58 USD $463.68 USD
-30 %
Brand: ToolsEngg
Weight: 2.70kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC12 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
12
32
49.5
M10
80.5
46..
$243.49 USD $347.84 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC14 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
14
34
49.5
M10
110
46
..
$324.58 USD $463.68 USD
-30 %
Brand: ToolsEngg
Weight: 2.70kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC14 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
14
34
49.5
M10
80.5
46..
$243.49 USD $347.84 USD
-30 %
Brand: ToolsEngg
Weight: 2.70kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC16 110 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
16
38
49.5
M12
110
49
..
$324.58 USD $463.68 USD
-30 %
Brand: ToolsEngg
Weight: 2.80kg
Item Name
DV
d
D1
D2
G
L
L1
L2
DV50 HC16 80.5 (AD+B) Hydraulic Expansion Chuck Balanced to G2.5 25,000 RPM (DIN 69871)
50
16
38
49.5
M12
80.5
49..
$243.49 USD $347.84 USD
