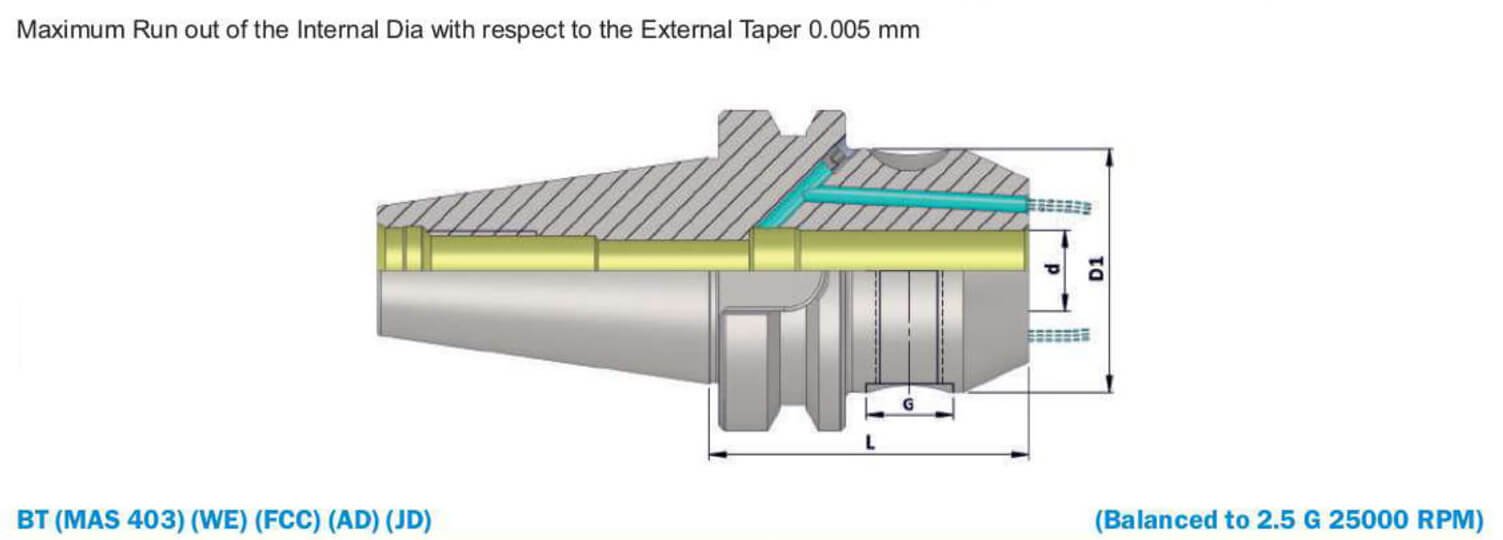

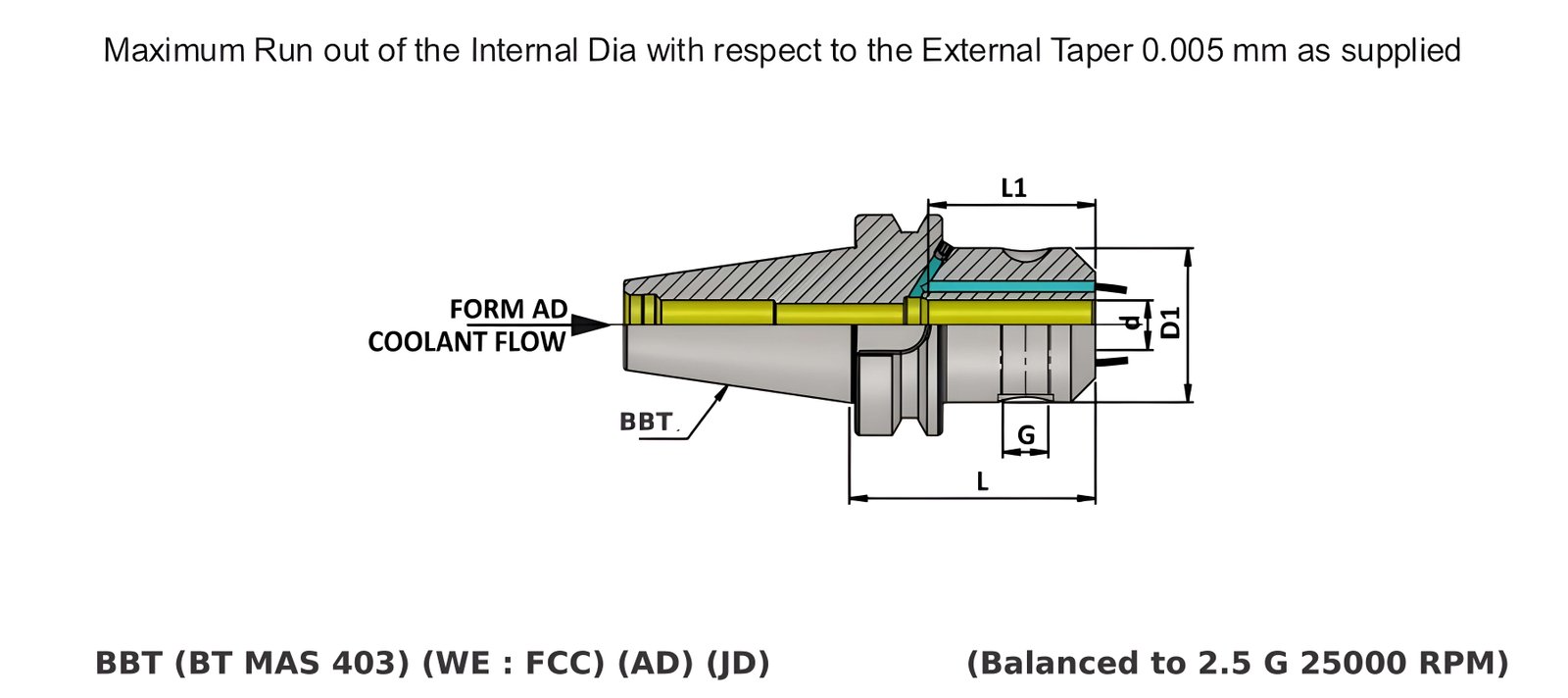

| Item Name | ISO | d | D1 | G | L |
|---|---|---|---|---|---|
| BT30 WE06 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 6 | 25 | M6 | 50 |
| BT30 WE08 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 8 | 28 | M8 | 50 |
| BT30 WE10 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 10 | 35 | M10 | 50 |
| BT30 WE12 055 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 12 | 42 | M12 | 55 |
| BT30 WE14 055 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 14 | 44 | M14 | 55 |
| BT30 WE16 063 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 16 | 48 | M16 | 63 |
| BT30 WE18 063 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 18 | 50 | M18 | 63 |
| BT30 WE20 070 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL | 30 | 20 | 52 | M20 | 70 |
Brand: ToolsEngg
Weight: 1.10kg
Item Name
ISO
d
D1
G
L
BT30 WE06 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL
30
6
25
M6
50 BT40 Taper Details ..
$61.73 USD
Brand: ToolsEngg
Weight: 1.10kg
Item Name
ISO
d
D1
G
L
BT30 WE08 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL
30
8
28
M8
50 BT40 Taper Details ..
$58.18 USD
Brand: ToolsEngg
Weight: 1.10kg
Item Name
ISO
d
D1
G
L
BT30 WE10 050 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL
30
10
35
M10
50 BT40 Taper Details ..
$58.18 USD
Brand: ToolsEngg
Weight: 1.10kg
Item Name
ISO
d
D1
G
L
BT30 WE12 055 Weldon Type Holder With Face Coolant Channel (FCC) AD/2.5G 25000SL
30
12
42
M12
55 BT40 Taper Details ..
$58.18 USD
