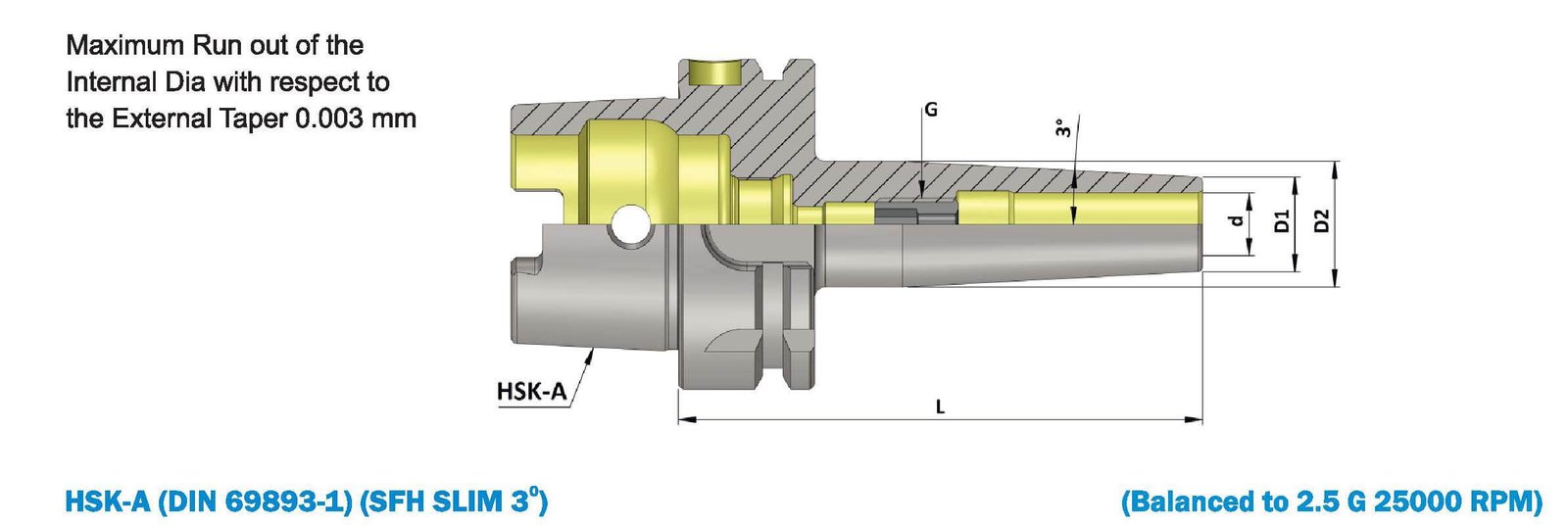

| Item Name | HSK-A | d | D1 | D2 | G | L | L1 |
|---|---|---|---|---|---|---|---|
| HSK-A 63 SFH03 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 3 | 9 | 15 | - | 80 | 12 |
| HSK-A 63 SFH03 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 3 | 9 | 18 | - | 120 | 12 |
| HSK-A 63 SFH04 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 4 | 10 | 16 | - | 80 | 14 |
| HSK-A 63 SFH04 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 4 | 10 | 19 | - | 120 | 14 |
| HSK-A 63 SFH05 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 5 | 11 | 17 | - | 90 | 15 |
| HSK-A 63 SFH05 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 5 | 11 | 20 | - | 120 | 15 |
| HSK-A 63 SFH06 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 6 | 12 | 18 | M5 | 80 | 36 |
| HSK-A 63 SFH06 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 6 | 12 | 21 | M5 | 120 | 36 |
| HSK-A 63 SFH06 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 6 | 12 | 25 | M5 | 160 | 36 |
| HSK-A 63 SFH08 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 8 | 14 | 20 | M6 | 80 | 36 |
| HSK-A 63 SFH08 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 8 | 14 | 23 | M6 | 120 | 36 |
| HSK-A 63 SFH08 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 8 | 14 | 27 | M6 | 160 | 36 |
| HSK-A 63 SFH10 085 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 10 | 16 | 22 | M8 | 85 | 41 |
| HSK-A 63 SFH10 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 10 | 16 | 25 | M8 | 120 | 41 |
| HSK-A 63 SFH10 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 10 | 16 | 29 | M8 | 160 | 41 |
| HSK-A 63 SFH12 090 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 12 | 18 | 24 | M10 | 90 | 46 |
| HSK-A 63 SFH12 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 12 | 18 | 27 | M10 | 120 | 46 |
| HSK-A 63 SFH12 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 12 | 18 | 31 | M10 | 160 | 46 |
| HSK-A 63 SFH14 090 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 14 | 20 | 26 | M10 | 90 | 46 |
| HSK-A 63 SFH14 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 14 | 20 | 29 | M10 | 120 | 46 |
| HSK-A 63 SFH14 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 14 | 20 | 32 | M10 | 160 | 46 |
| HSK-A 63 SFH14 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 14 | 20 | 32 | M10 | 160 | 46 |
| HSK-A 63 SFH16 095 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 16 | 22 | 28 | M12 | 95 | 49 |
| HSK-A 63 SFH16 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 16 | 22 | 31 | M12 | 120 | 49 |
| HSK-A 63 SFH16 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 16 | 22 | 34 | M12 | 160 | 49 |
| HSK-A 63 SFH18 095 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 18 | 24 | 30 | M12 | 95 | 49 |
| HSK-A 63 SFH18 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 18 | 24 | 33 | M12 | 120 | 49 |
| HSK-A 63 SFH18 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 18 | 24 | 36 | M12 | 160 | 49 |
| HSK-A 63 SFH20 100 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 20 | 26 | 32 | M16 | 100 | 51 |
| HSK-A 63 SFH20 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 20 | 26 | 35 | M16 | 120 | 51 |
| HSK-A 63 SFH20 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1) | 63 | 20 | 26 | 38 | M16 | 160 | 51 |
-30 %
Brand: Spindle Tooling Division
Weight: 0.87kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH03 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
3
9
14
-
80
..
$160.51 USD $229.31 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.10kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH03 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
3
9
18
-
120
..
$171.61 USD $245.17 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.10kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH03 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
3
9
19
-
160
..
$199.86 USD $285.52 USD
-30 %
Brand: Spindle Tooling Division
Weight: 0.92kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH04 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
4
10
15
-
80
..
$160.51 USD $229.31 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.02kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH04 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
4
10
19
-
120
..
$171.61 USD $245.17 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.21kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH04 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
4
10
23
-
160
..
$199.86 USD $285.52 USD
-30 %
Brand: Spindle Tooling Division
Weight: 0.92kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH05 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
5
11
16
-
80
..
$152.54 USD $217.91 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.00kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH05 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
5
11
20
-
120
..
$166.88 USD $238.39 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.10kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH05 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
5
11
24
-
160
..
$194.91 USD $278.43 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.01kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH06 080 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
6
12
17
M5
80
..
$116.21 USD $166.01 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.10kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH06 120 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
6
12
21
M5
120
..
$144.77 USD $206.82 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.38kg
Item Name
HSK-A
d
D1
D2
G
L
L1
HSK-A 63 SFH06 160 SLIM 3 Degree Shrink Fit Holder (Balanced to G2.5 25000 RPM) (DIN 69893-1)
63
6
12
25
M5
160
..
$166.77 USD $238.24 USD
