ISO Tool Holders (DIN 2080)

ISO Tool Holders (DIN 2080) : Technical Information



ISO 2080 Standard (Type 1)

ISO 2080 Standard (Type 1)

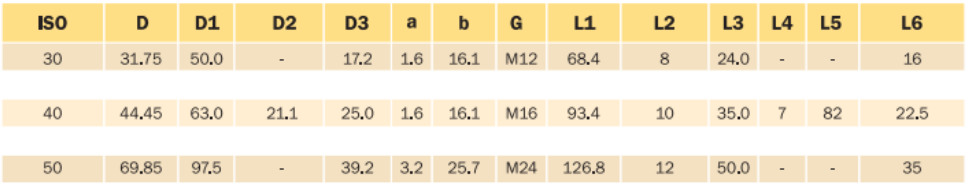

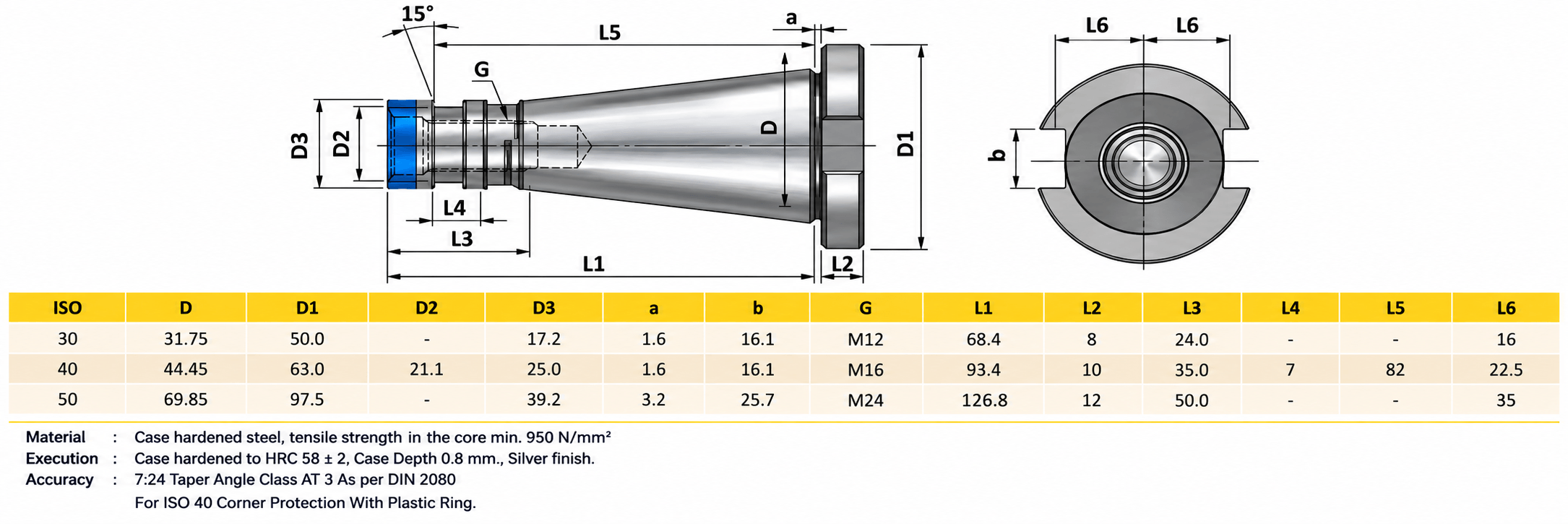

Pull End Groove For OTT (Type 2)

Pull End Groove For OTT (Type 2)

ISO Tool Holders (DIN 2080) : Technical Information

ISO Tool Holders Material Composition





Pull-Back System:



When troubleshooting a problem, assuming that the toolholder is at fault is not the correct course of action. The spring pack, drawbar, gripper, and retention knob/pull studs are major components for the successful operation of a machine tool because wear or breakage of these parts is a major concern.


  • Spring pack — Can become weak or out of adjustment. This can cause chatter during a milling operation, which causes damage to the adapter taper, spindle taper, cutter, or workpiece.
  • Gripper fingers — If worn, they may not grip the retention knob/pull stud correctly, enabling the adapter to move, resulting in chatter and damage to the adapter.
  • Retention Knob/Pull Stud — A worn or incorrect retention knob/pull stud will not enable proper gripping for pull back on the taper. This is a very serious safety hazard due to the movement of the adapter. Using an improper knob may result in a lack of any detectable gripping force.
