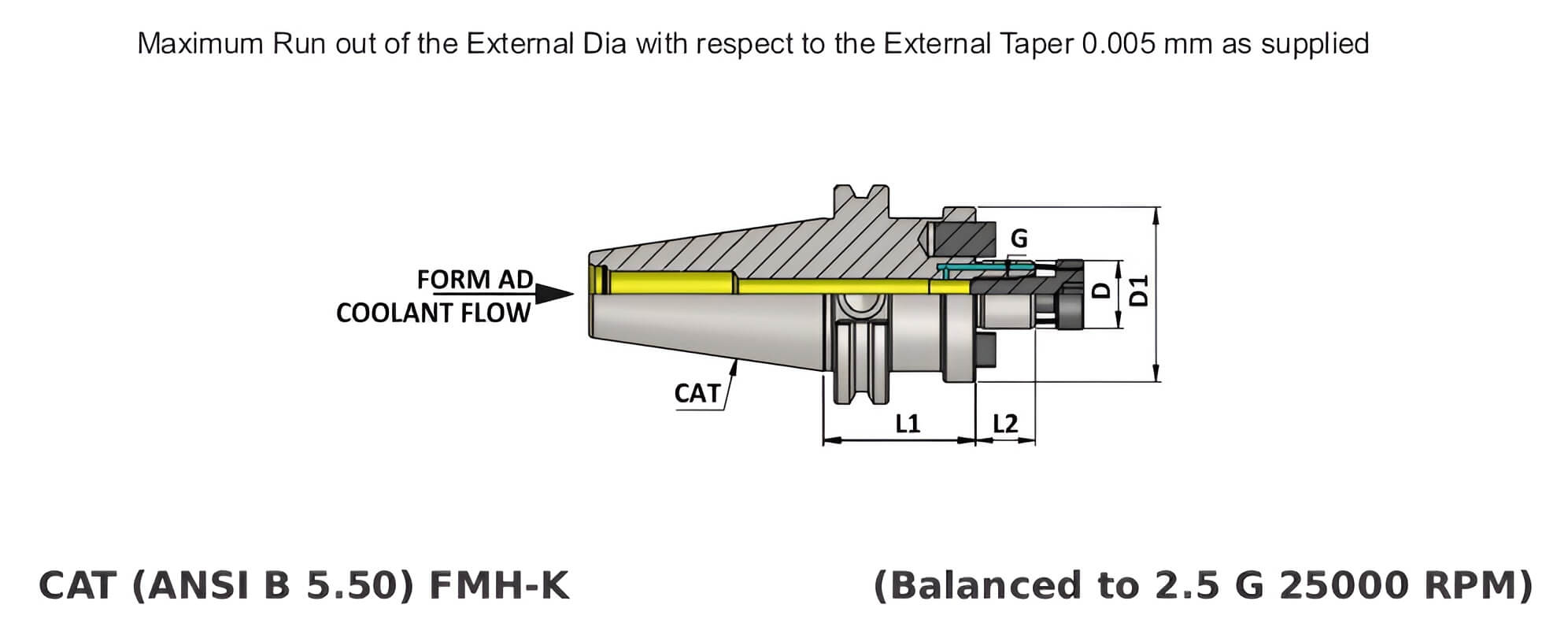

| ITEM NAME | CAT | D | D1 | L1 | L2 | G |
|---|---|---|---|---|---|---|
| CAT40 FMH-K16 045 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 16 | 38 | 45 | 17 | M8x1.25P |
| CAT40 FMH-K16 100 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 16 | 38 | 100 | 17 | M8x1.25P |
| CAT40 FMH-K16 130 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 16 | 38 | 130 | 17 | M8x1.25P |
| CAT40 FMH-K16 160 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 16 | 38 | 160 | 17 | M8x1.25P |
| CAT40 FMH-K22 045 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 22 | 48 | 45 | 19 | M10x1.25P |
| CAT40 FMH-K22 100 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 22 | 48 | 100 | 19 | M10x1.25P |
| CAT40 FMH-K22 130 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 22 | 48 | 130 | 19 | M10x1.25P |
| CAT40 FMH-K22 160 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 22 | 48 | 160 | 19 | M10x1.25P |
| CAT40 FMH-K27 050 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 27 | 58 | 50 | 21 | M12x1.75P |
| CAT40 FMH-K27 100 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 27 | 58 | 100 | 21 | M12x1.75P |
| CAT40 FMH-K27 130 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 27 | 58 | 130 | 21 | M12x1.75P |
| CAT40 FMH-K27 160 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 27 | 58 | 160 | 21 | M12x1.75P |
| CAT40 FMH-K32 055 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 32 | 78 | 55 | 24 | M16x2P |
| CAT40 FMH-K32 100 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 32 | 78 | 100 | 24 | M16x2P |
| CAT40 FMH-K32 130 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 32 | 78 | 130 | 24 | M16x2P |
| CAT40 FMH-K32 160 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 32 | 78 | 130 | 24 | M16x2P |
| CAT40 FMH-K40 055 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 40 | 88 | 55 | 27 | M20x2.5P |
| CAT40 FMH-K40 100 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 40 | 88 | 100 | 27 | M20x2.5P |
| CAT40 FMH-K40 130 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 40 | 88 | 130 | 27 | M20x2.5P |
| CAT40 FMH-K40 160 AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 40 | 88 | 160 | 27 | M20x2.5P |
| CAT40 FMH-K 3/4'' 1 3/4'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 3/4" | 2" | 1 3/4" | 0.687 | 3/8"-24 UNF-2B x 1.0" |
| CAT40 FMH-K 3/4'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 3/4" | 2" | 4" | 0.687 | 3/8"-24 UNF-2B x 1.0" |
| CAT40 FMH-K 3/4'' 2.5''AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 3/4" | 2" | 2.5" | 0.687 | 3/8"-24 UNF-2B x 1.0" |
| CAT40 FMH-K 3/4'' 6.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 3/4" | 2" | 6" | 0.687 | 3/8"-24 UNF-2B x 1.0" |
| CAT40 FMH-K 1.0'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1.0" | 2.375" | 2" | 0.687 | 1/2"-20 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1.0'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1.0" | 2.375" | 4.0" | 0.687 | 1/2"-20 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1.0'' 6.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1.0" | 2.375" | 6.0" | 0.687 | 1/2"-20 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1-1/4'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/4" | 2.875" | 2.0" | 0.687 | 5/8"-18 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1-1/4'' 2.21'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/4" | 2.875" | 2.21" | 0.687 | 5/8"-18 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1-1/4'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/4" | 2.875" | 4.0" | 0.687 | 5/8"-18 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1-1/4'' 6.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/4" | 2.875" | 6.0" | 0.687 | 5/8"-18 UNF-2B x 1 1/4" |
| CAT40 FMH-K 1-1/2'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/2" | 3.75" | 2.0" | 0.938" | 3/4"-16 UNF-2B x 1 1/2" |
| CAT40 FMH-K 1-1/2'' 2.21'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/2" | 3.75" | 2.21" | 0.938" | 3/4"-16 UNF-2B x 1 1/2" |
| CAT40 FMH-K 1-1/2'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM) | 40 | 1-1/2" | 3.75" | 4.0" | 0.938" | 3/4"-16 UNF-2B x 1 1/2" |
-30 %
Brand: Spindle Tooling Division
Weight: 2.46kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/2'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/2"
3.75"
2.0"
0.938"
3/4"-16 UNF-2B x 1 1/2" CAT40 Taper Deta..
$63.84 USD $91.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/2'' 2.21'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/2"
3.75"
2.21"
0.938"
3/4"-16 UNF-2B x 1 1/2" CAT40 Taper De..
$69.44 USD $99.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/2'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/2"
3.75"
4.0"
0.938"
3/4"-16 UNF-2B x 1 1/2" CAT40 Taper Deta..
$75.04 USD $107.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.18kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/4'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/4"
2.875"
2.0"
0.687
5/8"-18 UNF-2B x 1 1/4" CAT40 Taper Deta..
$52.64 USD $75.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/4'' 2.21'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/4"
2.875"
2.21"
0.687
5/8"-18 UNF-2B x 1 1/4" CAT40 Taper De..
$58.24 USD $83.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 3.79kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/4'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/4"
2.875"
4.0"
0.687
5/8"-18 UNF-2B x 1 1/4" CAT40 Taper Deta..
$62.72 USD $89.60 USD
-30 %
Brand: Spindle Tooling Division
Weight: 6.04kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1-1/4'' 6.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1-1/4"
2.875"
6.0"
0.687
5/8"-18 UNF-2B x 1 1/4" CAT40 Taper Deta..
$77.28 USD $110.40 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.58kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1.0'' 2.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1.0"
2.375"
2"
0.687
1/2"-20 UNF-2B x 1 1/4" CAT40 Taper Details&nb..
$48.16 USD $68.80 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.51kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1.0'' 4.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1.0"
2.375"
4.0"
0.687
1/2"-20 UNF-2B x 1 1/4" CAT40 Taper Details&..
$60.48 USD $86.40 USD
-30 %
Brand: Spindle Tooling Division
Weight: 3.63kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 1.0'' 6.0'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
1.0"
2.375"
6.0"
0.687
1/2"-20 UNF-2B x 1 1/4" CAT40 Taper Details&..
$75.04 USD $107.20 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.33kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 3/4'' 1 3/4'' Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
3/4"
2"
1 3/4"
0.687
3/8"-24 UNF-2B x 1.0" CAT40 Taper Details&nb..
$48.72 USD $69.60 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
ITEM NAME
CAT
D
D1
L1
L2
G
CAT40 FMH-K 3/4'' 2.5''AD Face Mill Holder Through Coolant (Balanced to G 2.5 25000 RPM)
40
3/4"
2"
2.5"
0.687
3/8"-24 UNF-2B x 1.0" CAT40 Taper Details ..
$54.88 USD $78.40 USD
