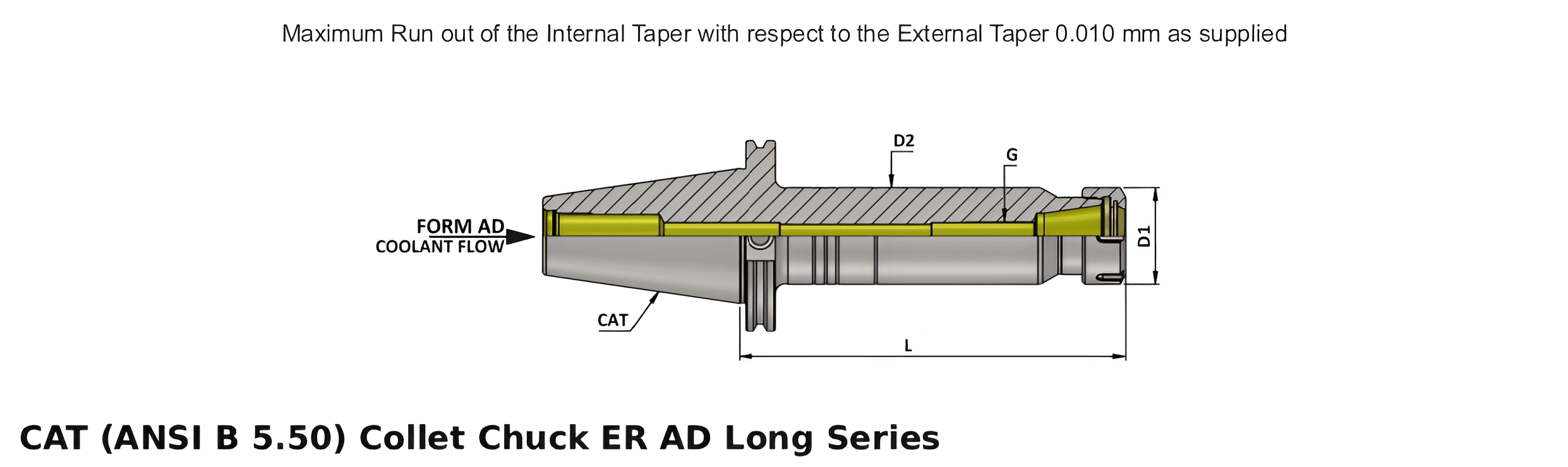

| Item Name | CAT | Suitable Collet | Collet Capacity | D1 | D2 | L | G | Suitable Nut | Suitable Spanner |
|---|---|---|---|---|---|---|---|---|---|
| CAT40 ER16 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER16 | 0.0156"- 0.375" | 32 | 30 | 200 | M10X1.5P | UM/ER16 | E16 |
| CAT40 ER16 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER16 | 0.0156"- 0.375" | 32 | 30 | 250 | M10X1.5P | UM/ER16 | E16 |
| CAT40 ER16 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER16 | 0.0156"- 0.375" | 32 | 30 | 300 | M10X1.5P | UM/ER16 | E16 |
| CAT40 ER20 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER20 | 0.0625"-0.5" | 35 | 34 | 200 | M10X1.5P | UM/ER20 | E20 |
| CAT40 ER20 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER20 | 0.0625"-0.5" | 35 | 34 | 250 | M10X1.5P | UM/ER20 | E20 |
| CAT40 ER20 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER20 | 0.0625"-0.5" | 35 | 34 | 300 | M10X1.5P | UM/ER20 | E20 |
| CAT40 ER25 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER25 | 0.0625"-0.625" | 42 | 40 | 200 | M16X2P | UM/ER25 | E25 |
| CAT40 ER25 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER25 | 0.0625"-0.625" | 42 | 40 | 250 | M16X2P | UM/ER25 | E25 |
| CAT40 ER25 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER25 | 0.0625"-0.625" | 42 | 40 | 300 | M16X2P | UM/ER25 | E25 |
| CAT40 ER32 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER32 | 0.125"-0.75" | 50 | 48 | 200 | M16X2P | UM/ER32 | E32 |
| CAT40 ER32 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER32 | 0.125"-0.75" | 50 | 48 | 250 | M16X2P | UM/ER32 | E32 |
| CAT40 ER32 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER32 | 0.125"-0.75" | 50 | 48 | 300 | M16X2P | UM/ER32 | E32 |
| CAT40 ER40 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER40 | 0.125"-1.00" | 63 | 52 | 200 | M16X2P | UM/ER40 | E40 |
| CAT40 ER40 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER40 | 0.125"-1.00" | 63 | 52 | 250 | M16X2P | UM/ER40 | E40 |
| CAT40 ER40 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM) | 40 | ER40 | 0.125"-1.00" | 63 | 52 | 300 | M16X2P | UM/ER40 | E40 |
-30 %
Brand: Spindle Tooling Division
Weight: 1.85kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER16 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$95.94 USD $137.06 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER16 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$133.67 USD $190.96 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.30kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER16 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$180.03 USD $257.18 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.85kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER20 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$95.94 USD $137.06 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER20 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$133.67 USD $190.96 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.30kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER20 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$180.03 USD $257.18 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.85kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER25 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$95.94 USD $137.06 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER25 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$133.67 USD $190.96 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.30kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER25 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$180.03 USD $257.18 USD
-30 %
Brand: Spindle Tooling Division
Weight: 1.85kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER32 200 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$95.94 USD $137.06 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.00kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER32 250 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$133.67 USD $190.96 USD
-30 %
Brand: Spindle Tooling Division
Weight: 2.30kg
Item Name
CAT
Suitable
Collet
Collet Capacity
D1
D2
L
G
Suitable Nut
Suitable Spanner
CAT40 ER32 300 AD ER Collet Chuck (Balanced to G 2.5 25000 RPM)
..
$180.03 USD $257.18 USD
