HSK Tool Holders Technical Information
HSK tool holders are precision-engineered for high-speed machining, excellent concentricity, and rigid taper-and-face contact between the spindle and holder.
HSK-A (DIN 69893-1) Form A
HSK-A is a dual-contact style holder designed for automatic tool change applications. It provides high rigidity, repeatable accuracy, and stable performance at high spindle speeds.
HSK-C (DIN 69893-1) Form C
HSK-C is widely used for milling and light-to-medium machining operations. Its compact design supports good balance and reliable tool positioning in CNC machines.

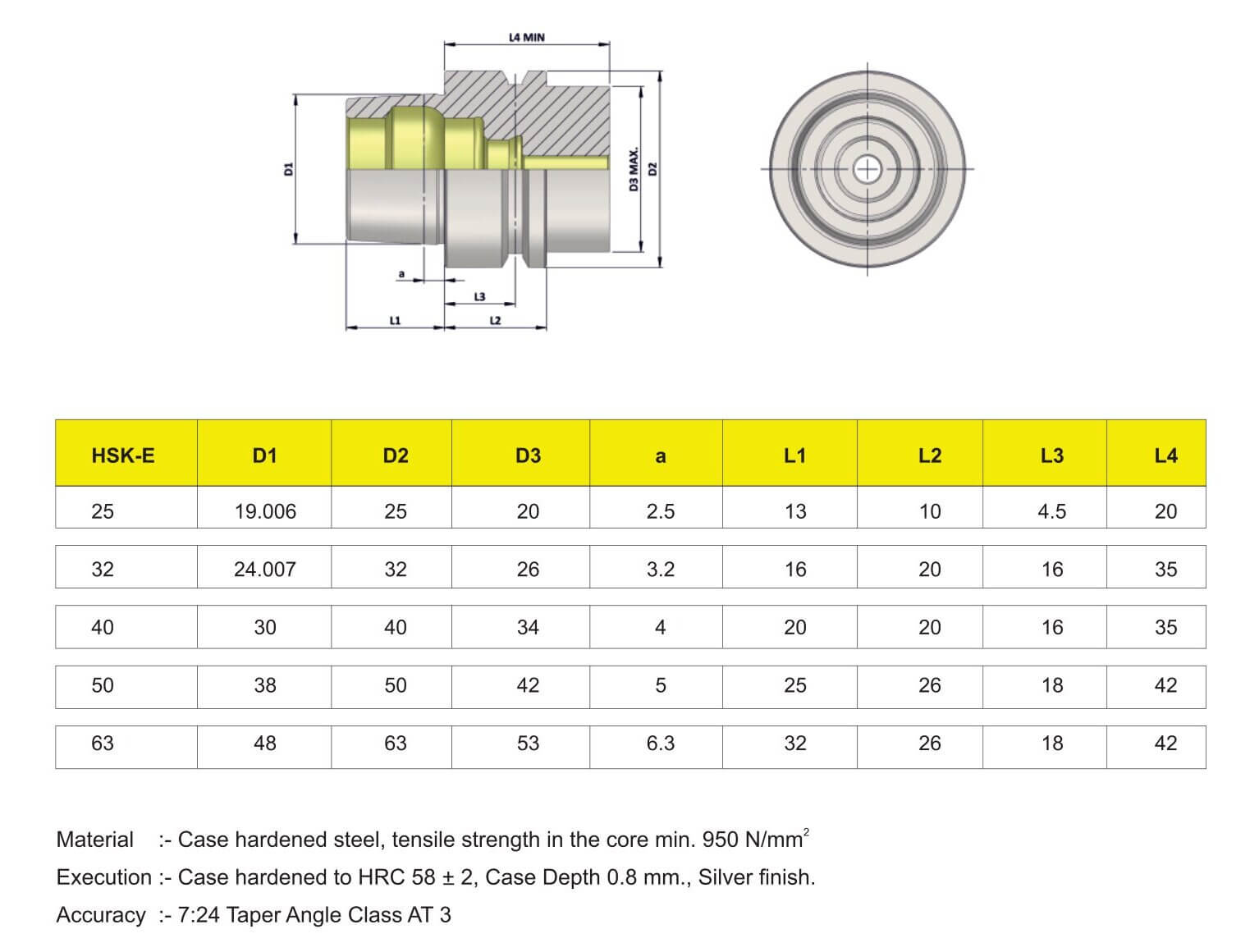

HSK-E (DIN 69893-5) Form E
HSK-E is intended for high-speed machining and is commonly used where automatic tool changing and excellent runout control are required.

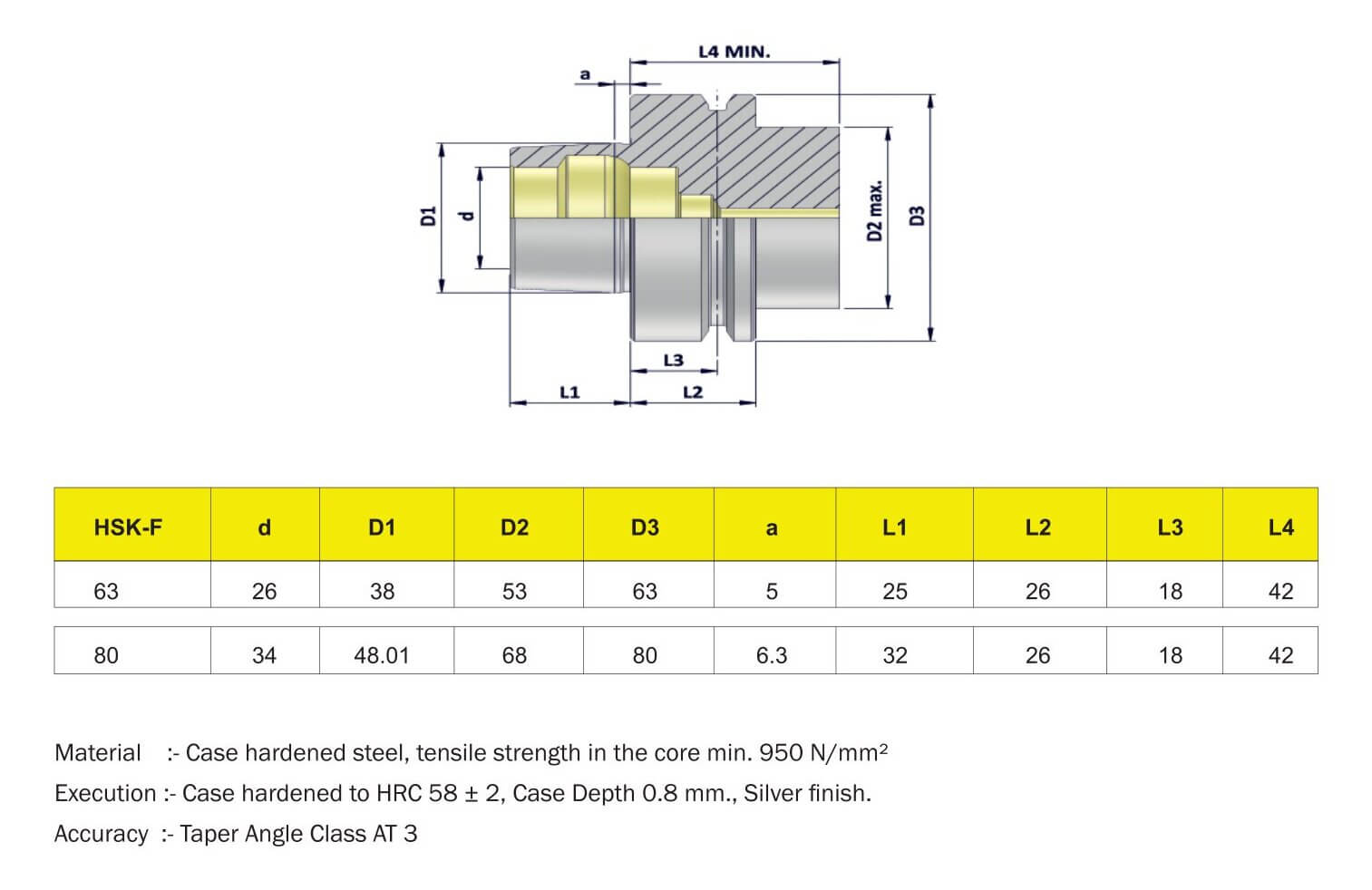

HSK-F (DIN 69893-6) Form F
HSK-F is designed for heavy-duty machining and high torque transmission. It offers strong performance in demanding applications requiring both speed and rigidity.
Manufacturing of HSK Tool Holders
HSK tool holders require extremely high manufacturing precision compared with BT, SK, or CAT taper holders. The clearance between the tool taper and spindle receiver taper is typically less than two microns, so production must be tightly controlled using high-quality air gauges and strict inspection processes.
What is an HSK Tool Holder?
HSK is a short, hollow taper tool holder developed in Germany. It uses dual face contact between the taper and the flange to create a rigid connection between the spindle and the tool holder.
How It Works
HSK holders contact the spindle taper and the spindle face at the same time, creating a solid connection in both axial and radial directions.
Performance Benefit
Face contact helps prevent the tool holder from being pulled into the spindle at high speed, improving stability and machining safety.
HSK holders are best suited for high-speed, high-precision CNC machining where repeatability, balance, and rigidity are critical.
