ISO Tool Holders (DIN 2080) Technical Information
ISO tool holders to DIN 2080 are widely used for reliable spindle connection, accurate taper seating, and stable machining performance in conventional and CNC applications.
Reliable Taper Performance
DIN 2080 holders are designed for secure taper engagement and dependable pull-back operation. Correct taper condition, retention hardware, and machine drawbar performance are essential for accuracy, safety, and tool life.

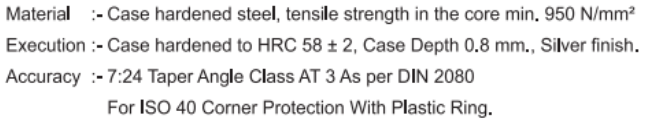

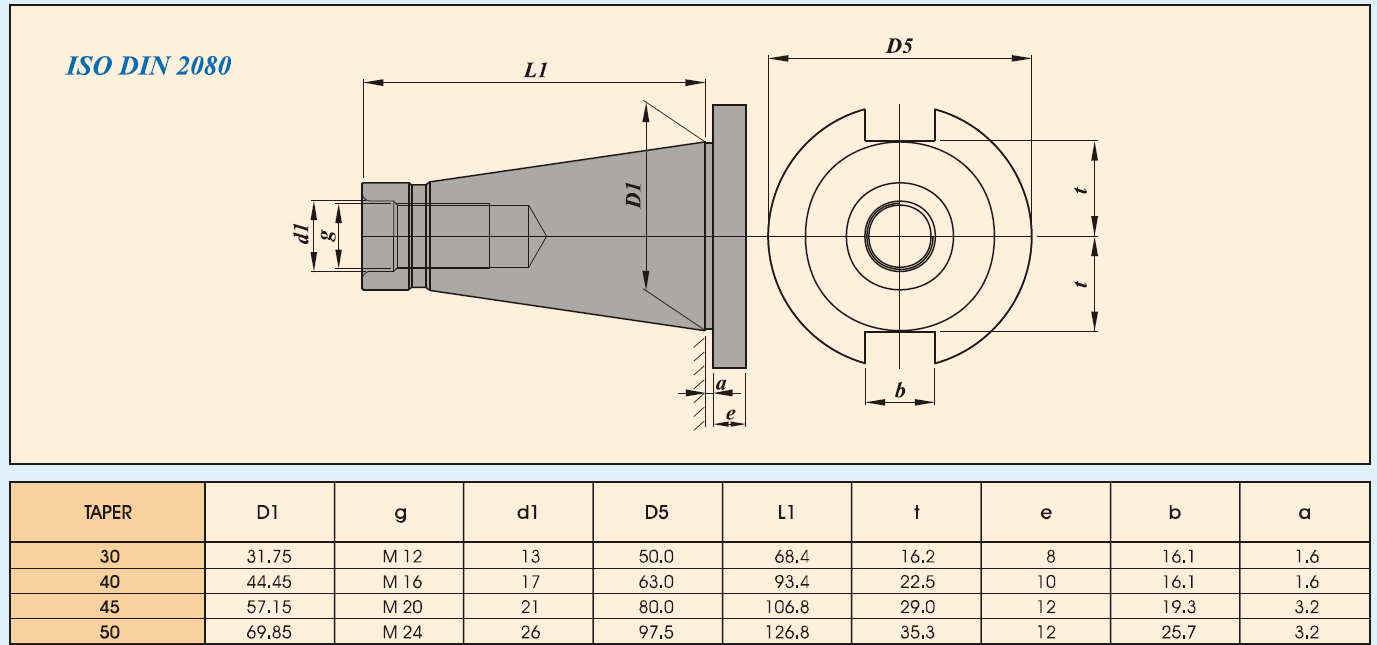

ISO 2080 Standard (Type 1)

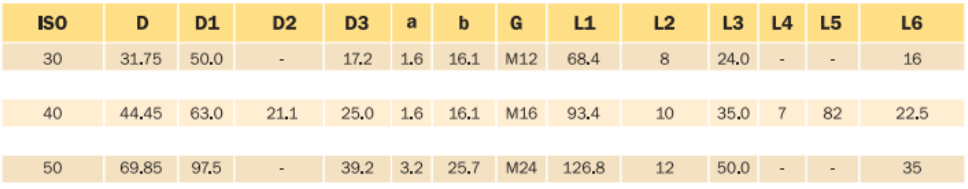

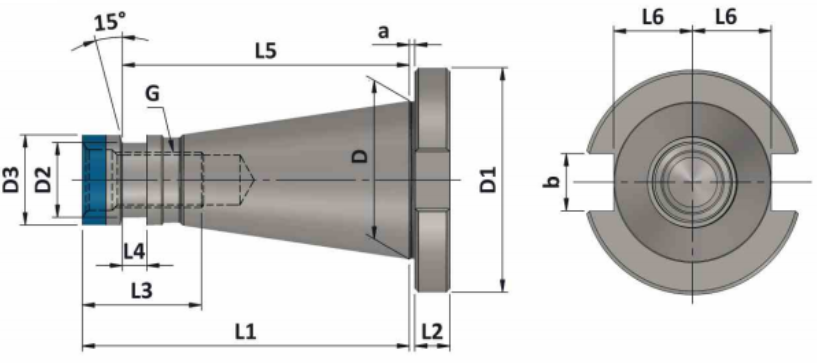

Pull End Groove for OTT (Type 2)
Pull-Back System
When troubleshooting holder performance, the tool holder itself should not be assumed to be the only cause. The spring pack, drawbar, gripper mechanism, and retention knob or pull stud are all critical to safe and stable machine operation.
Key Components
- Spring pack.
- Drawbar assembly.
- Gripper fingers.
- Retention knob or pull stud.
Why It Matters
- Wear or incorrect adjustment can reduce clamping performance.
- Poor gripping can allow holder movement inside the spindle.
- Incorrect pull studs can create serious safety and accuracy risks.
Important: Worn, weak, or incorrect pull-back components can cause chatter, taper damage, spindle damage, poor machining accuracy, and possible safety hazards.
Common Pull-Back Issues
- Spring pack: Can weaken or move out of adjustment, leading to chatter and damage to the taper, cutter, spindle, or workpiece.
- Gripper fingers: If worn, they may not grip the pull stud correctly, allowing holder movement and resulting in vibration or taper damage.
- Retention knob or pull stud: A worn or incorrect pull stud may prevent proper gripping force and can create a serious operational safety hazard.
Note: For safe performance, always inspect the holder, pull stud, drawbar system, and spindle condition together.
